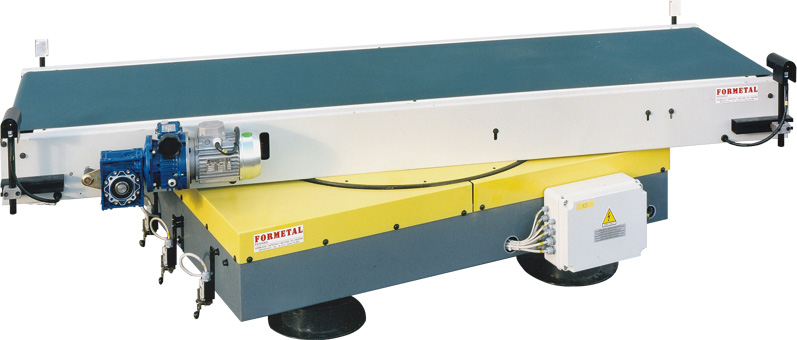

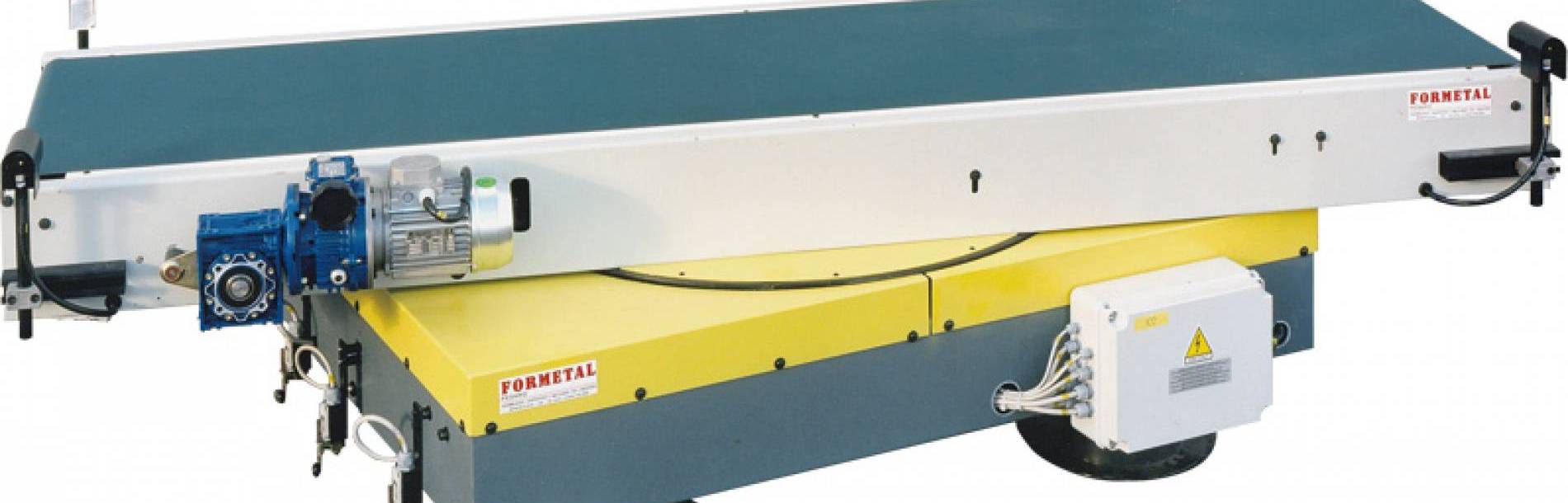

TRP.90-180 - Turning belt conveyor

Tthis machine is inserted in the assembly line to rotate assembled furniture 180 degrees or to deviate the progress flow of the line 90 degrees.

An electromechanical chain drive device controls the rotation of the belt conveyor, the motor clutch enables to avoid shearing while the control inverter guarantees a perfect speed balance during rotation.



Conveyor length
mm 000 - 2500
Conveyor width
mm 600
Conveyor height
mm 500 - 900
Conveyor speed
  3 - 15 mt/min
5 - 25 mt/min
6 - 30 mt/min
